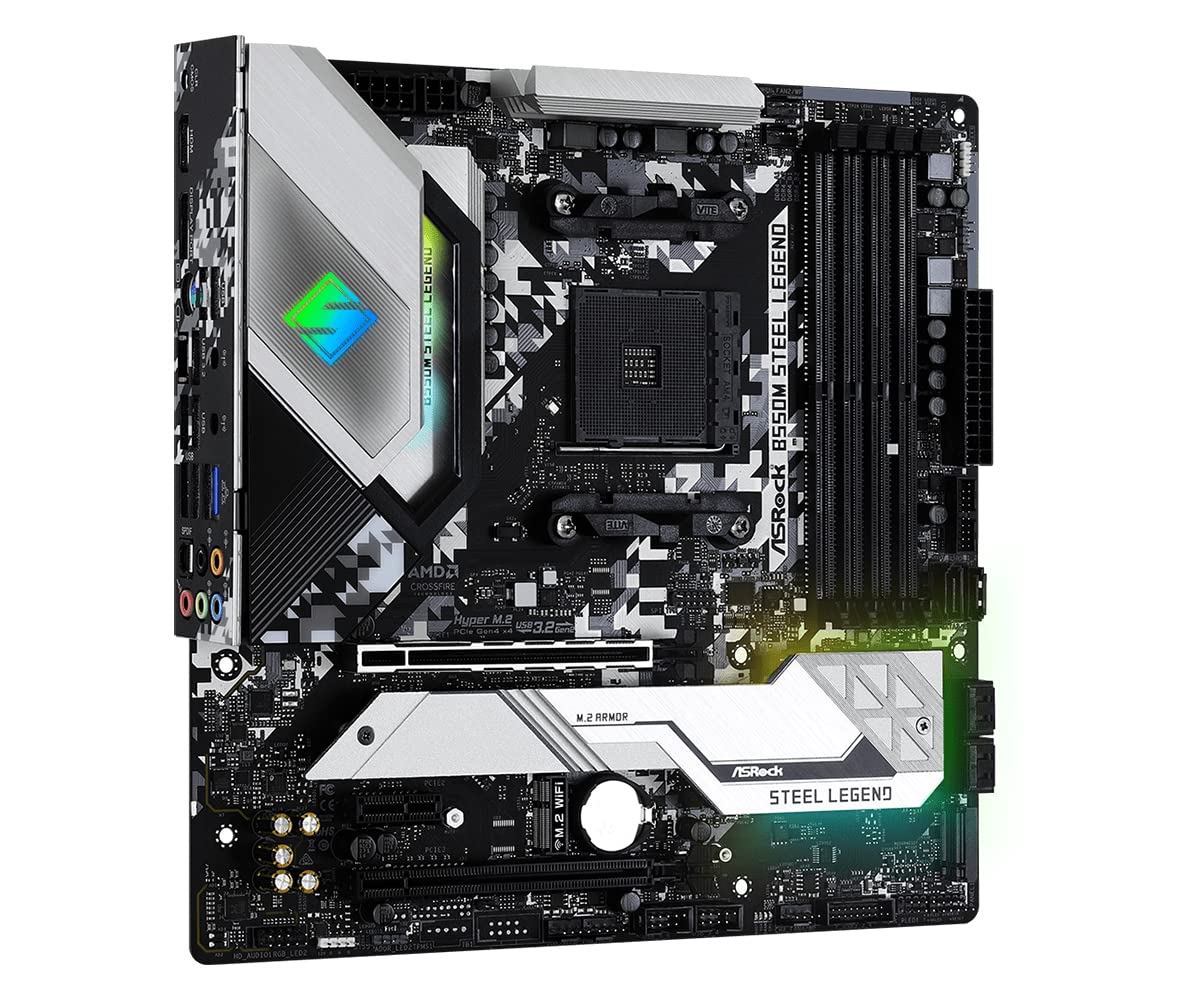

ASRock B550M Steel Legend AM4 M-ATX Motherboard

Specifications

• FEATURES:

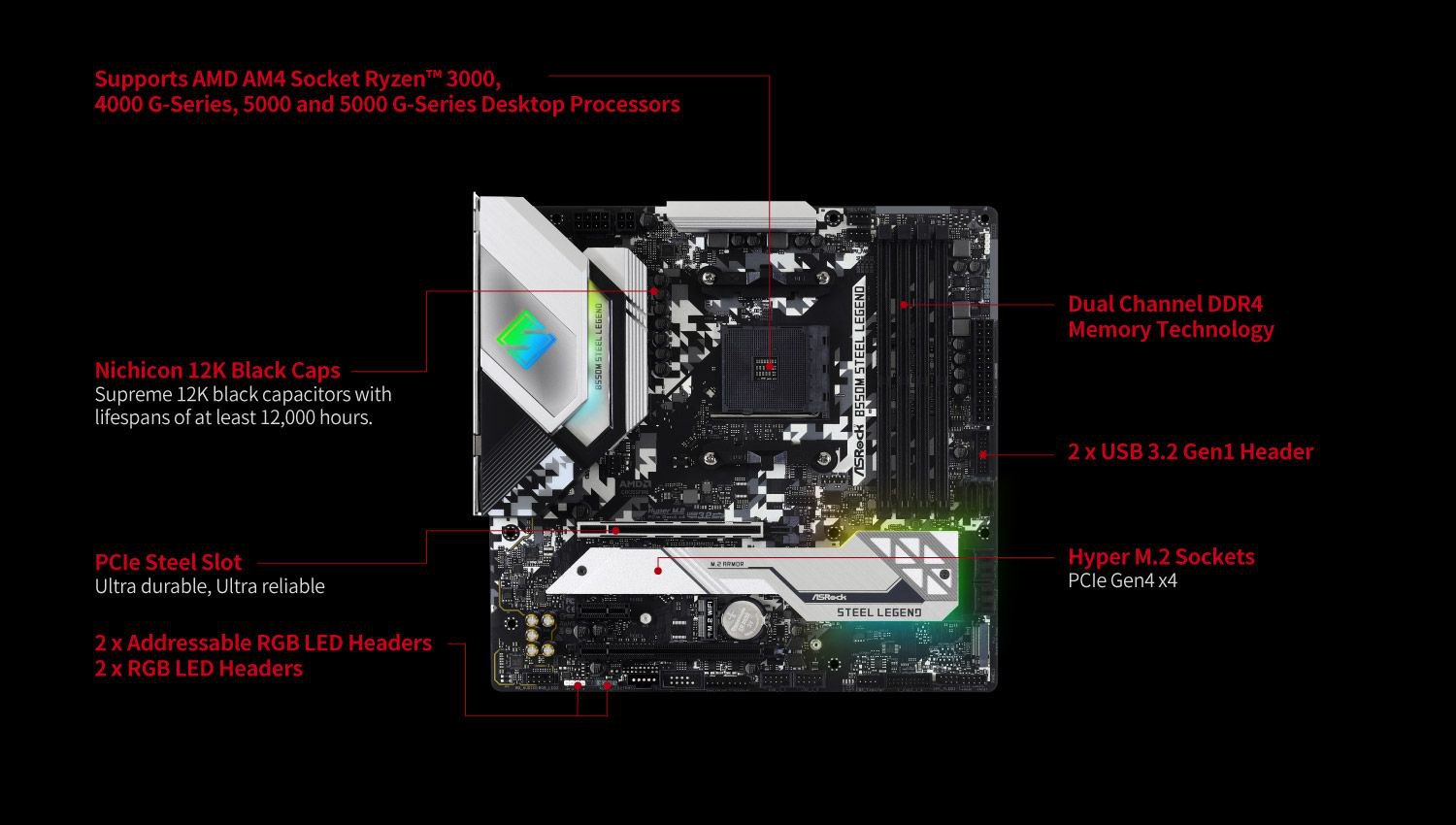

• Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
• Supports DDR4 4733+ (OC)
• 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1, 1 x M.2 Key E for Wi-Fi
• Graphics Output Options: HDMI, DisplayPort
• 7.1 CH HD Audio (Realtek ALC1220/ALC1200 Audio Codec), Nahimic Audio
• 6 x SATA3, 1 x Hyper M.2 (PCIe Gen4x4), 1 x M.2 (PCIe Gen3x2 & SATA3)
• 2 x USB 3.2 Gen2 (Rear Type A+C), 8 x USB 3.2 Gen1 (4 Front, 4 Rear)
• Dragon 2.5G LAN
• AMD CrossFireX™ support
• SPECIFICATIONS:
• Form Factor: Micro ATX (24.4 cm x 22.4 cm)
• Socket: AMD AM4
• Compatible CPUs: Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series
• Chipset: AMD B550
• Memory:
• 4 x DDR4 DIMMs, up to 128GB
• support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133
• ECC & non-ECC
• Un-buffered memory
• Supports Intel XMP
• Storage:
• 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
• 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)
• 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16Gb/s)
• Graphics Output:
• Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
• 1 x HDMI 2.1 (4K@60Hz)
• 1 x DisplayPort 1.4 (5K@120Hz)
• Networking:
• 2.5 Gigabit LAN 10/100/1000/2500Mb/s
• Dragon RTL8125BG
• Audio:
• Codec: Realtek ALC1220/ALC1200 Audio Codec
• Features: Premium Blu-ray Audio support, Supports Surge Protection, PCB Isolate Shielding, Individual PCB Layers for R/L Audio Channel, Gold Audio Jacks, Nahimic Audio
• Slots:
• AMD Ryzen series CPUs (Vermeer and Matisse)
• 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)
• AMD Ryzen series APUs (Cezanne and Renoir)
• 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)
• AMD Ryzen series APUs (Picasso)
• 2 x PCI Express x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)
• 1 x PCI Express 3.0 x1 Slot
• Supports AMD Quad CrossFireX™ and CrossFireX™
• 15μ Gold Contact in VGA PCIe Slot (PCIE1)
• 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT PCIe Wi-Fi module
• Rear Panel I/O:
• 2 x Antenna Mounting Points
• 1 x PS/2 Mouse/Keyboard Port
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x Optical SPDIF Out Port
• 1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection)
• 1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection)
• 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• 1 x Clear CMOS Button
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
• Connector:
• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header

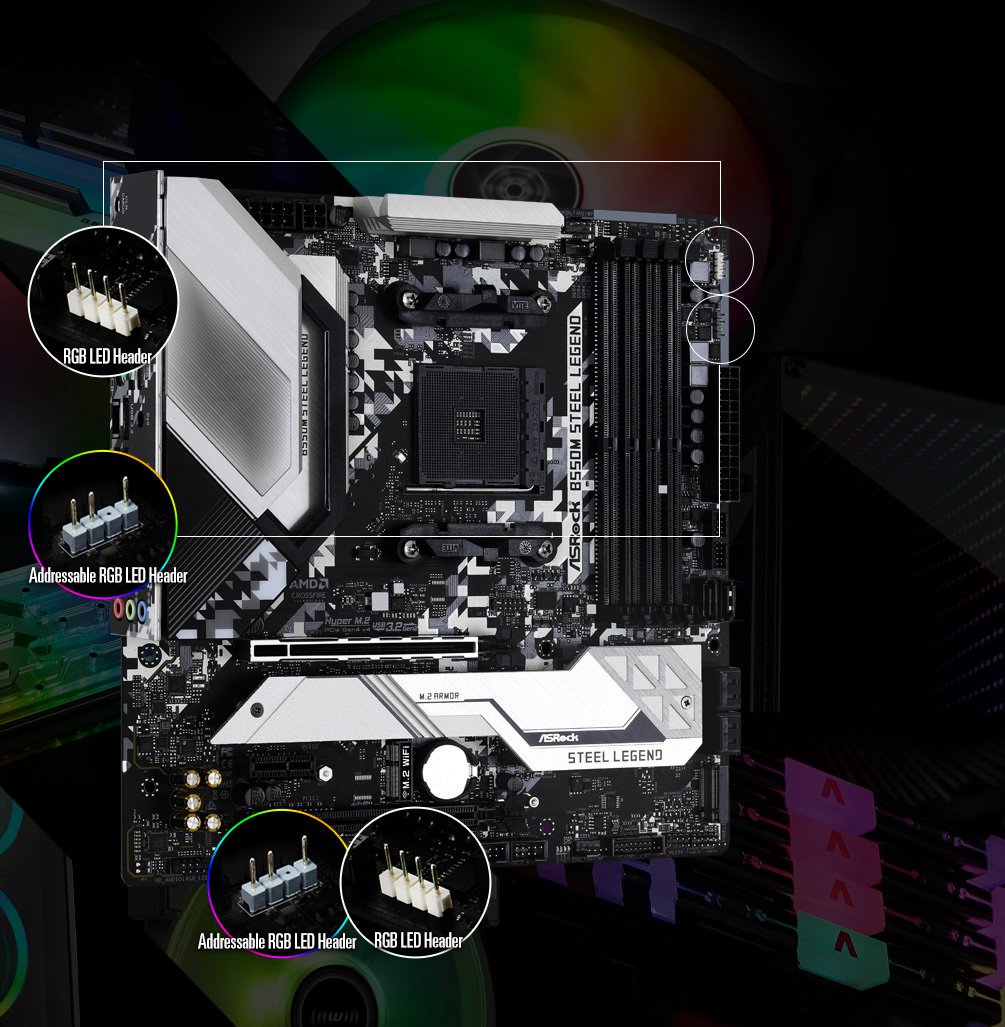

• 2 x RGB LED Headers
• 2 x Addressable LED Headers
• 1 x CPU Fan Connector (4-pin)
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
• OS: Microsoft Windows® 10 64-bit / 11 64-bit
• Certifications: FCC, CE & ErP/EuP ready (ErP/EuP ready power supply is required)
• WHAT’S IN THE BOX:

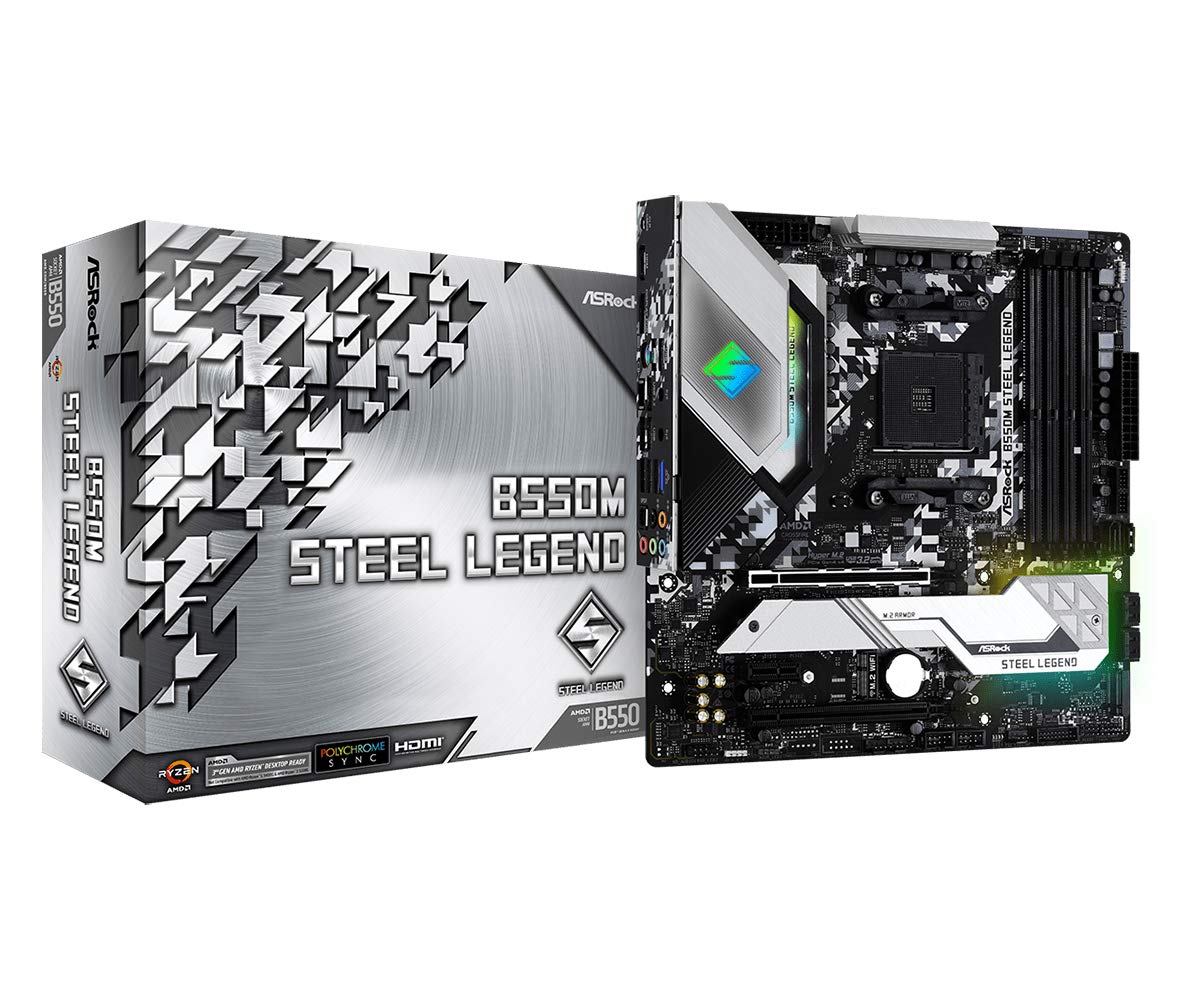

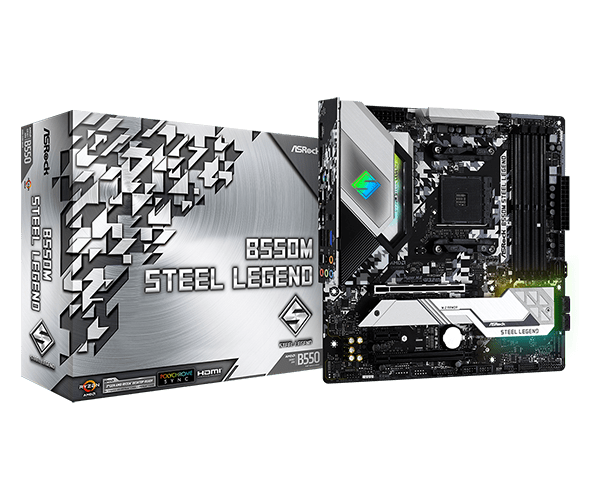

• ASRock B550M Steel Legend AM4 M-ATX Motherboard – Black x1
• SATA Data Cables x 2
• Screws for M.2 Sockets x 2

Terms & Conditions

24 Months Warranty
