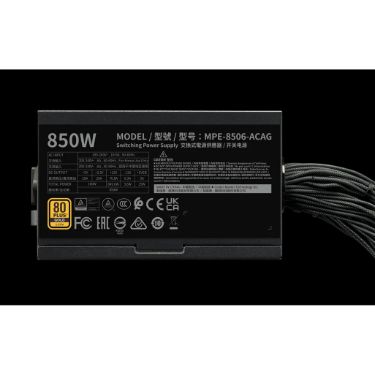

Cooler Master MWE GOLD 850 V3 ATX 3.1 Non-Modular, 850 W, 100 - 240 V, 50/60 Hz, 6 - 10 A, Active

Power

AC input voltage 100 - 240
AC input frequency 50/60
Input current 6 - 10
Total power 850
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 100
Combined power (+5V) 100
Combined power (-12V) 3.6
Combined power (+5Vsb) 15
Max output current (+3.3V) 20
Max output current (+12V) 70.8
Max output current (+5V) 20
Max output current (-12V) 0.3
Max output current (+5Vsb) 3
Efficiency 90
Hold time 16
Power Good signal delay range 100 - 150
Combined power (+12V) 849.6
Power protection features Over current,Over power,Over total voltage,Over voltage,Short circuit,Under voltage
Packaging data

Package type Box
Package width 190
Package height 260
Package weight 2210
Package depth 110
Case or master carton dimensions (W x D x H) 275 x 215 x 570
Operational conditions

Operating temperature (T-T) 0 - 40
Performance

80 PLUS certification 80 PLUS Gold
Mean time between failures (MTBF) 100000
Purpose PC
Power supply unit (PSU) form factor ATX
Bearing technology HDB
ATX version 3.1
Ports & interfaces

Peripheral (Molex) power connectors (4-pin) 3
Number of SATA power connectors 6
EPS power connector (8-pin) Y
Motherboard power connector 24-pin ATX
Motherboard power cable length 550
PCI Express power connectors (6+2 pin) 4
Cabling type Non-Modular
SATA power cable length 400,550,700
Peripheral (Molex) power cable length 400,550,700
ATX Power connector (24-pin) Y
EPS power connector (4+4 pin) Y
Number of EPS connectors 2
Technical details

Sustainability certificates ErP
Certificates

Compliance certificates BIS,BSMI,CCC,CE,EAC,Federal Communications Commission (FCC),RCM,TÜV mark,UKCA,cTUVus
